LoRa SX1278 433MHz Transceiver rf Module E32-433T20S1 SMD 3km Long Range 433M UART Serial Port rf Transmitter and Receiver

Shipping:
Processing time 1-5 days
Shipping time from China to United States / Europe 7-14 days
Shipping time from China to WW 10-30 days
Shipping cost $2.9 per order
Availability:
855
  • Product details
  • Application: other
  • Brand Name: CDSENET
  • Condition: New
  • Distance: 3000m
  • Is_customized: Yes
  • Model Number: Module
  • Port Number: 1
  • RF IC: SX1278
  • RF connector: SMA-K
  • Size: 17*25.5mm
  • Suppy Voltage: 5V 1
  • Type: Wireless Module
  • Working Frequency : 433 MHz
  • Working Frequency: 433MHz

Wireless rf module



LoRa SX1278 433MHz Transceiver rf Module E32-433T20S1 SMD 3km Long Range 433M UART Serial Port rf Transmitter and Receiver


RF Parameter Value Remark
Working frequency 410~441 MHz

Default: 433MHz

Transmitting power 10~20 dBm

Default: 20dBm(About 100mW)

Receiving sensitivity -146 dBm

Air data rate: 0.3kbps

Air data rate 0.3k~19.2kbps

Default: 2.4kbps

Test distance 3000 meter

In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,

air data rate: 2.4kbps



Hardware Parameter Value Remark

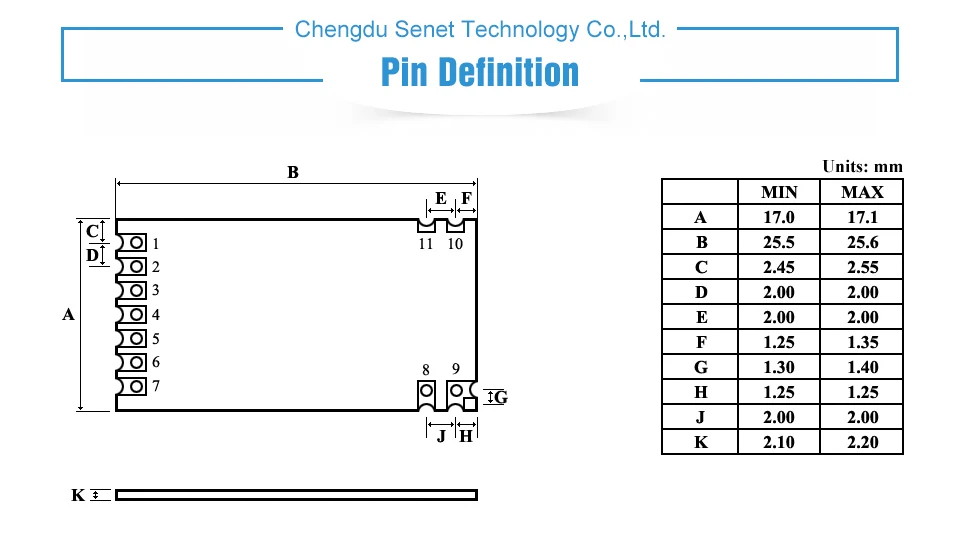

Size 17 * 25.5 mm



Antenna type Stamp hole



Communication interface UART

Baud rate: 1200~115200, default: 9600

Package SMD



Buffer 512 bytes buffer

Automatically sub-packaging with 58 bytes per package



Electronic parameter Min. Typ. Max. Unit Condition
Power supply 2.3 3.3 5.2 V
Communication level 2.5 3.3 3.6 V
Transmitting current

100

110 120 mA 20dBm(100mW)
Receiving current 13 14 15 mA
Sleep current 3 4 5 μA
Operating temperature -40 20 +85
Operating humidity 10 60 90 %
Storage temperature -40 20 +125
E32 LoRa Transceivers (1)E32 LoRa Transceivers (2)E32 LoRa Transceivers (3)
E32-433T20S1 LoRa RF Transceiver
E32-TTL-100S1 SX1278 LoRa rf wireless module (6) E32-TTL-100S1 SX1278 LoRa rf wireless module (7)
